3 charging outputs

Name: BlueSmart Charger IP 22 12 V / 30 A / 3 charging outputs
Brand: VICTRON
Price: 249.07 EUR
Availability: InStock
Rating: 5 (30 reviews)

Item number: 41210

View Ratings (30)

View Ratings (30) Questions (14)

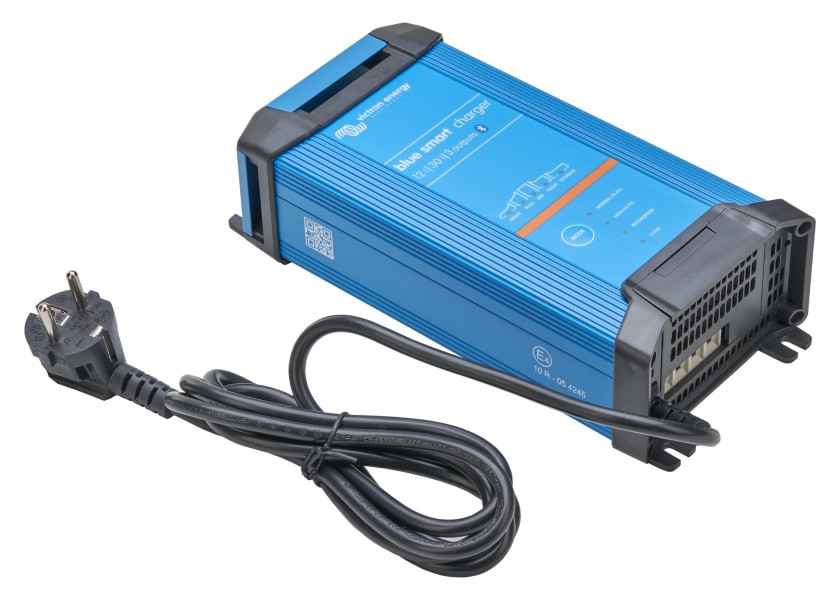

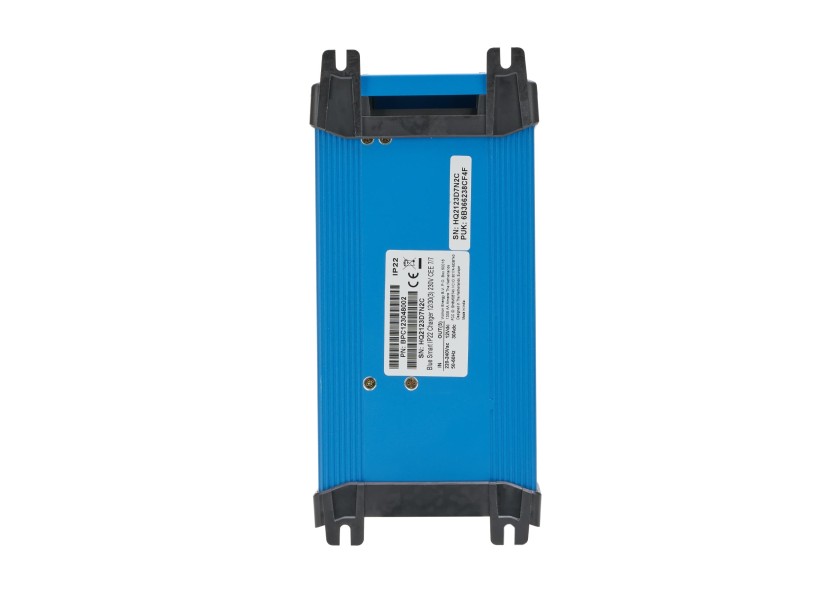

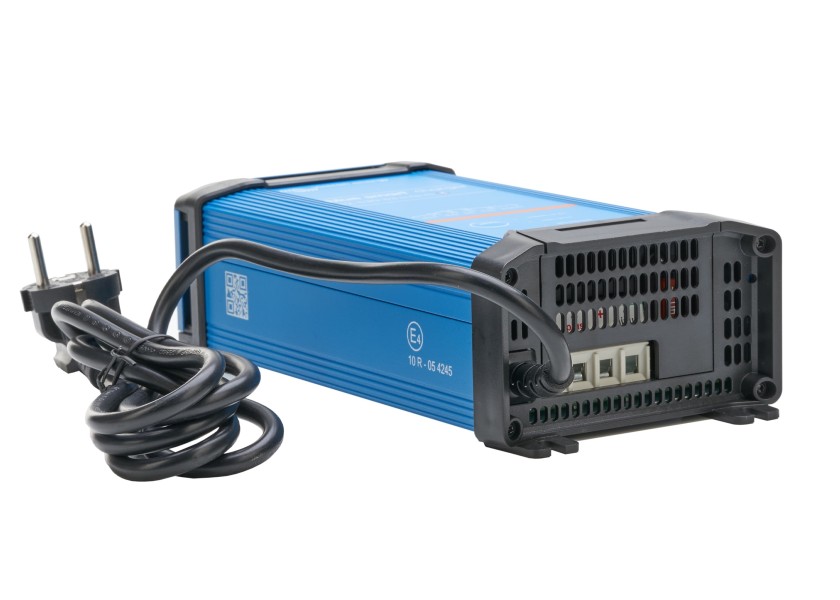

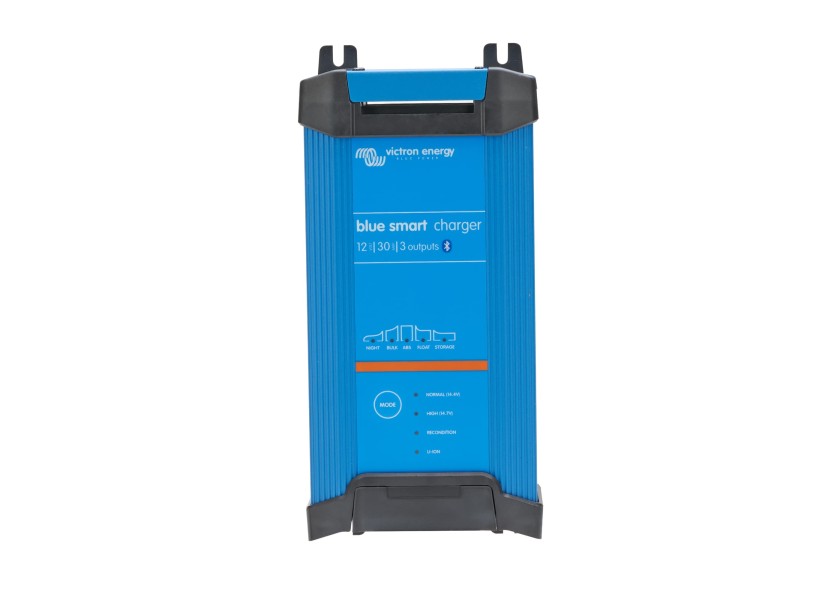

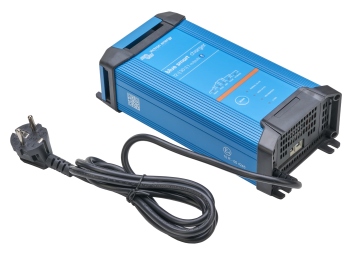

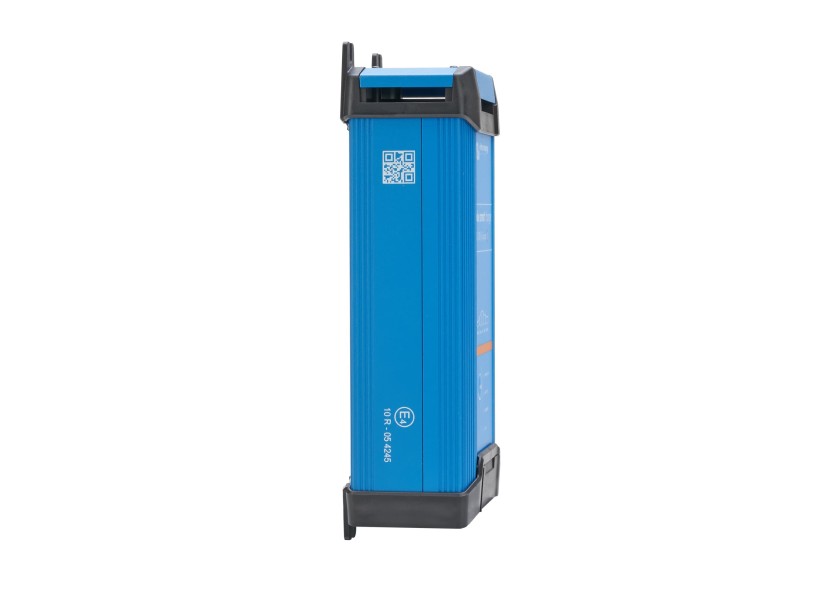

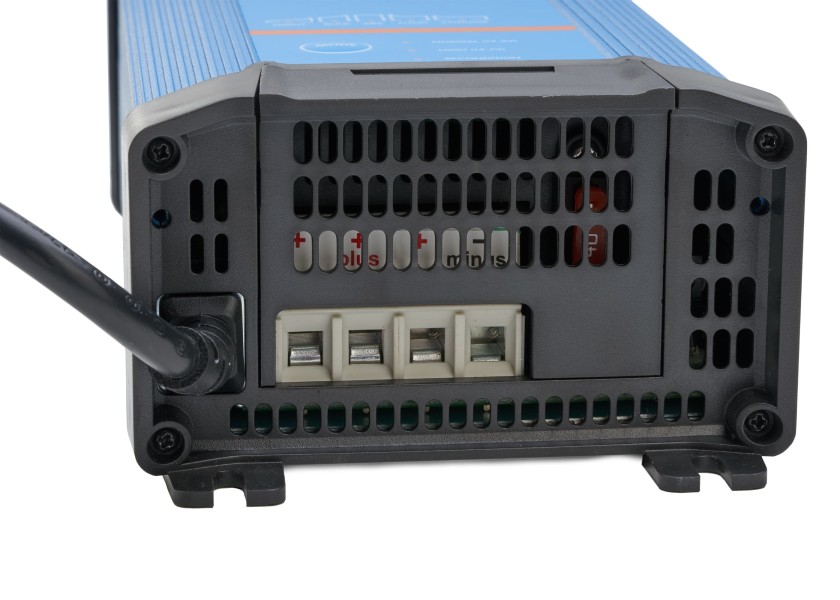

VICTRON BlueSmart Charger IP 22 12 V 30 A 3 charging outputs Image 1 of 6

VICTRON BlueSmart Charger IP 22 12 V 30 A 3 charging outputs Image 2 of 6

VICTRON BlueSmart Charger IP 22 12 V 30 A 3 charging outputs Image 3 of 6

VICTRON BlueSmart Charger IP 22 12 V 30 A 3 charging outputs Image 4 of 6

VICTRON BlueSmart Charger IP 22 12 V 30 A 3 charging outputs Image 5 of 6

VICTRON BlueSmart Charger IP 22 12 V 30 A 3 charging outputs Image 6 of 6

1 times in use on a Jeanneau Sun Odyssey 349

Is currently in 52 shopping baskets

7 customers recommend this product

Recommended retail price: €265.01

only €249 ⁰⁷

-6%

You save: €15.94

Incl. VAT (Netherlands), excl. shipping cost.

24 | in stock

€249 ⁰⁷ VAT inc., ex-works

Buy now

To wish list Compare

Available variants

VICTRON BlueSmart Charger IP 22 12 V / 30 A

€235.97

only €223 ⁶⁵

VICTRON BlueSmart Charger IP 22 12 V / 20 A / 3 charging outputs

only €213 ⁴⁸

VICTRON BlueSmart Charger IP 22 12 V / 15 A / 1 charging output

€163.37

only €142 ³⁰

VICTRON BlueSmart Charger IP 22 12 V / 15 A / 3 charging outputs

€188.76

only €177 ⁸⁹

VICTRON BlueSmart Charger IP 22 12 V / 20 A / 1 charging output

only €188 ⁰⁶

At a glance!

Bluetooth

Integrated fan

customers like: Power

customers like: Quality

Product data

Article Number 41210
EAN 8719076052401
Model no. BPC123048002
Description VICTRON - Charger Blue Smart IP22 12/30(3)
Device type Charger
Network AC voltage 180 - 265 V
Battery nominal voltage 12 V
Charging Current 30 A
Charging outputs 3
Battery Capacity 60 - 300 Ah
Battery type Lead-Acid, AGM, Gel, Lithium (LifePO4)
Power Lead Yes
Integrated fan Yes
Integrated charging cable No
Temperature sensor can be connected No
Optional remote display/operation Yes
Width 108 mm
Height 235 mm
Depth 65 mm
Weight 1.3 kg
CAN Bus No
Bluetooth Yes
Continous Power 360 W

Product details

Highly efficient charger with an efficiency of up to 93% and very low power consumption when the battery is fully charged.
Thanks to the multi-stage charging algorithm, the battery is always supplied with exactly the right amount of energy that is needed. In addition, lithium-ion batteries are charged using a special algorithm.

Long-life, safe and quiet
Output current is reduced if the temperature rises above 60 °C, but the charger will not fail. You can also switch the charger to NIGHT or LOW mode. The maximum output voltage is reduced to 50% of the nominal value and the fan is switched off.

Recovery function for fully discharged batteries
The BlueSmart charger has three charging outputs that attempt to recharge even deeply discharged batteries. To do this, the charger will attempt to recharge a fully discharged battery with low current and resume normal charging once sufficient voltage has developed across the battery terminals.

Temperature compensated charging
The optimal charge voltage of a lead-acid battery varies inversely with temperature. The charger measures ambient temperature during the test phase and compensates for temperature during the charge process. Special settings are not needed.

Storage mode
Even the lower float charge voltage that follows the absorption period will cause grid corrosion. It is therefore essential to reduce the charge voltage even further when the battery remains connected to the charger for more than 48 hours.

Integrated Bluetooth
With its integrated Bluetooth you can monitor the status of the charger and batteries with a smartphone or tablet. The charger can be configured and updated using the VictronConnect app.

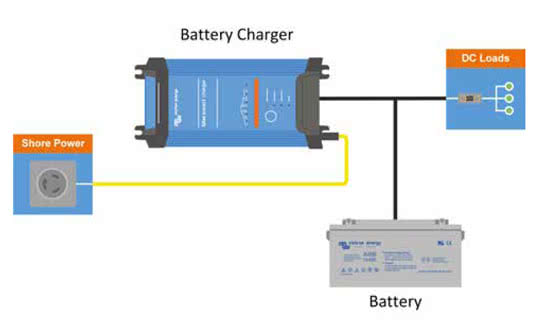

Simple system with DC consumers only
The battery charger charges the battery and at the same time serves as a power supplier for the connected devices.

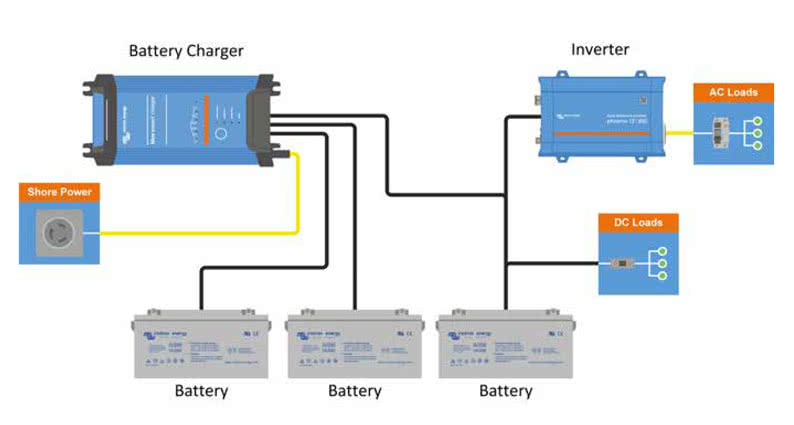

System with inverter
To ensure the supply of the 230 V AC source at all times, this system includes an inverter. For chargers with 3 outputs, several battery groups can be charged separately.

Technical Data

Input voltage range	180 - 265 V AC
Charge current	30 A
Charging current, NIGHT or LOW	15 A
Efficiency	93 %
No load power consumption	0.5 W
Frequency	45 - 65 Hz
Charging ports	3
Charge voltage 'absorption'	Normal: 14.4 V High: 14.7 V Li-Ion: 14.2 V
Charge voltage 'float'	Normal: 13.8 V Hoch: 13.8 V Li-Ion: 13.5 V
Storage mode	Normal: 13.2 V Hoch: 13.2 V Li-Ion: 13.5 V
Operating temperature range	-20 to +50 °C
Material	Aluminium
Battery connection	Screw terminals 13 mm²
Protection category	IP22
Weight:	1.3 kg
Dimensions (h x w x d)	235 x 108 x 65 mm

Documents

Datasheet

PDF (311,47 KB)

Manual

PDF (8,88 MB)

Datasheet

PDF (96,70 KB)

Drawing

PDF (671,47 KB)

Manual

PDF (780,54 KB)
