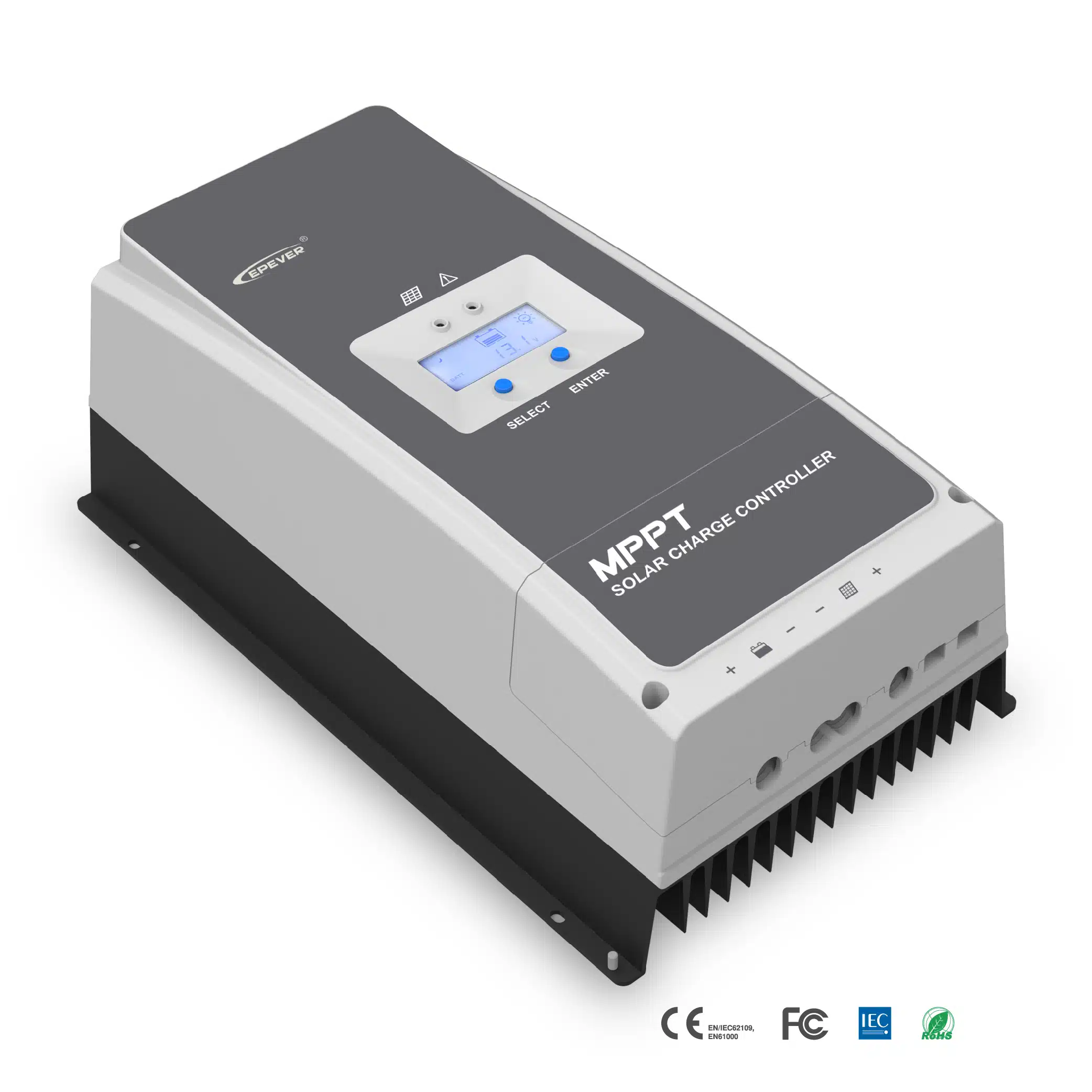

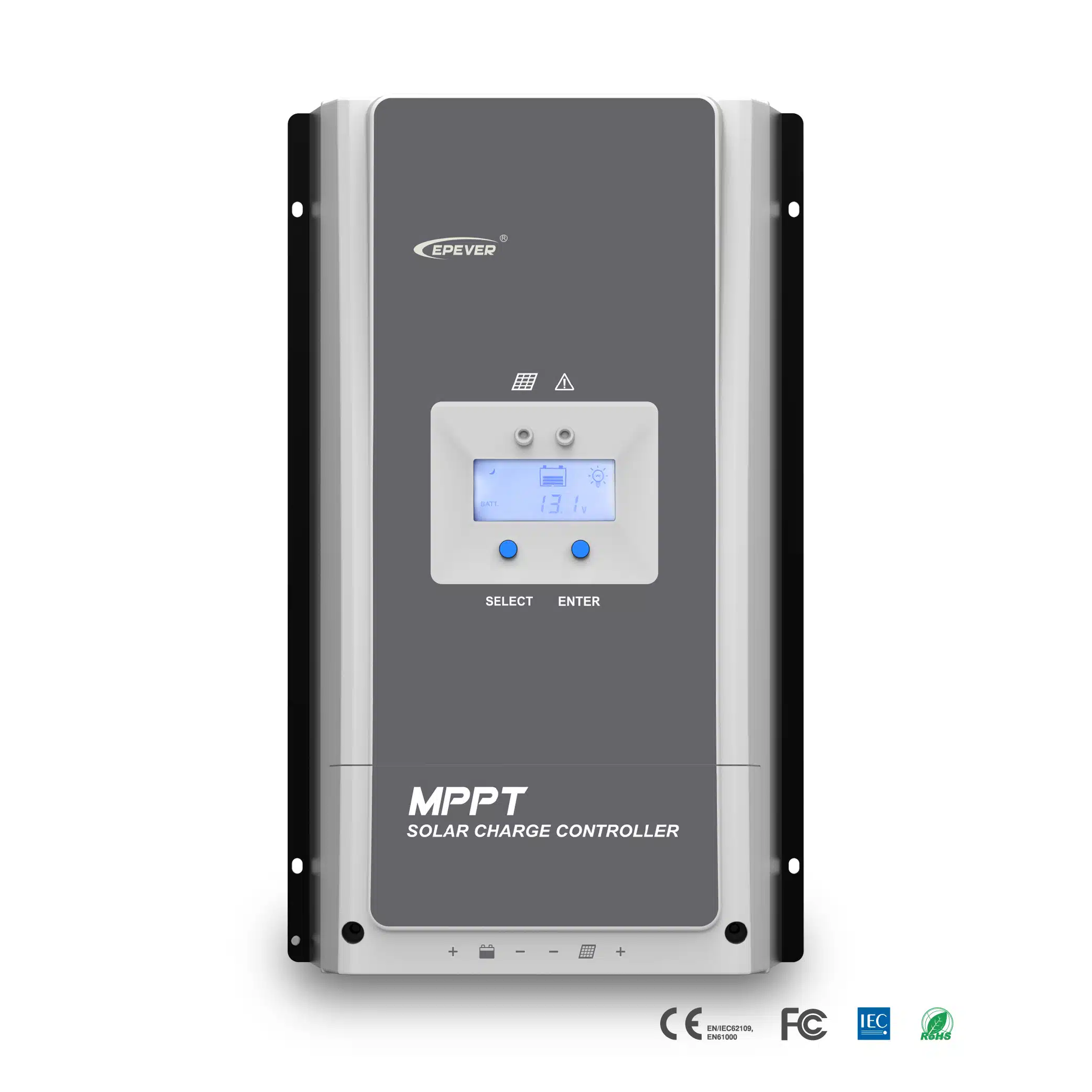

Tracer AN Series (50~100A) MPPT Charge Controller
with isolated RS485 and reply design, and Max. 6 units in parallel for up to 30KW system.
Tracer-AN (50A-100A) series is the largest charge controller series in EPEVER's product range and can take up to 5KW solar panel. For even more power, the user can use PAL-ADP-50N to connect max. 6 units of a controller in parallel for up to 30KW system. The multiple dry contact signals are designed for a diversified application.
| Model | Tracer6210AN | Tracer5415AN | Tracer6415AN | Tracer8415AN | Tracer10415AN | Tracer5420AN | Tracer6420AN | Tracer8420AN | Tracer10420AN |
| Nominal system voltage | 12/24VDC/Auto | 12/24/36/48VDC/Auto | |||||||
| Battery type | Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User | ||||||||
| Battery input voltage range | 8V๏ฝ32V | 8V๏ฝ68V | 8V๏ฝ68V | 8V๏ฝ68V | 8V๏ฝ68V | 8V๏ฝ68V | 8V๏ฝ68V | 8V๏ฝ68V | 8V๏ฝ68V |
| Rated charge current | 60A | 50A | 60A | 80A | 100A | 50A | 60A | 80A | 100A |
| Rated charge power | 750W/12V 1500W/24V |
625W/12V 1250W/24V 1875W/36V 2500W/48V |
750W/12V 1500W/24V 2250W/36V 3000W/48V |
1000W/12V 2000W/24V 3000W/36V 4000W/48V |
1250W/12V 2500W/24V 3750W/36V 5000W/48V |
625W/12V 1250W/24V 1875W/36V 2500W/48V |
750W/12V 1500W/24V 2250W/36V 3000W/48V |
1000W/12V 2000W/24V 3000W/36V 4000W/48V |
1250W/12V 2500W/24V 3750W/36V 5000W/48V |
| Max. conversion efficiency | 98.00% | 98.30% | 98.60% | 98.50% | 98.60% | 98.30% | 98.10% | 98.50% | 98.50% |
| Tracking efficiency | โฅ99.5% | ||||||||
| Max. PV open circuit voltage | 100V๏ผAt minimum operating environment temperature๏ผ 92V๏ผAt 25โ environment temperature ๏ผ |
150V๏ผAt minimum operating environment temperature๏ผ 138V๏ผAt 25โ environment temperature๏ผ |
200V๏ผAt minimum operating environment temperature๏ผ 180V๏ผAt 25โ environment temperature๏ผ |
||||||
| MPP voltage range | (Battery Voltage+2V) ๏ฝ72V |
(Battery Voltage +2V)๏ฝ108V | (Battery Voltage+2V)๏ฝ144V | ||||||
| Equalization voltage | Sealed:14.6V,Flooded:14.8V,User-defined:9-17V | ||||||||
| Boost voltage | Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V | ||||||||
| Float voltage | Gel/Sealed/Flooded:13.8V,User-defined:9-17V | ||||||||
| Low voltage reconnect voltage | Gel/Sealed/Flooded:12.6V,User-defined:9-17V | ||||||||
| Low voltage disconnect voltage | Gel/Sealed/Flooded:11.1V,User-defined:9-17V | ||||||||
| Self-consumption | 98mA/12V;60mA/24V;50mA/36V;46mA/48V | ||||||||
| Temperature compensation( for lead-acid battery) | ๏ผ3mV/โ/2V(Default) | ||||||||
| Relative humidity | 5% to 95% (N.C.) | ||||||||
| Enclosure | IP20 | ||||||||
| Communication interface | RS485(5VDC/200mA, Two RJ45 ports in parallel) | ||||||||
| Grounding | Common negative | ||||||||
| Operating temperature range | `-25โ๏ฝ+60โ(derating above 45โ) | ||||||||
| Dimensions(LxWxH)(mm) | 340ร232ร105.2 | 261ร216ร119 | 340ร236ร119 | 394ร240ร134 | 394ร242ร143 | 261ร216ร119 | 340ร236ร119 | 394ร240ร134 | 394ร242ร143 |
| Net weight | 3.5kg | 3.5kg | 4.5kg | 6.1kg | 7.4kg | 3.5kg | 4.5kg | 6.1kg | 7.4kg |
| 1. The controller can't automatically identify system voltage if lithium batteries were connected. | |||||||||
| 2. The voltage point is for the 12V system, please *2 in 24V system, *3 in 36V system, *4 in 48V system. | |||||||||
Datasheet
EPEVER-Datasheet-Tracer-AN๏ผ50-100A๏ผ
Manual
Tracer-AN(50-100A)-Manual-EN-V4.0
Certificates
Certificate IEC62109 Tracer-AN๏ผ50-100A๏ผ
Certificates
Certificate ROHS Tracer-AN๏ผ50-100A๏ผ
Product Highlights
MPPT tracking efficiency above 99.5%
Maximum charge conversion efficiency as high as 98%
Support lead-acid and lithium-ion batteries
Common negative grounding, Charging current up to 100A
Charging power and current limitation function
High-temperature charging power derating function
3 relays design for different demand: utility, generator and load
Support up to 6 units in parallel
Remote temperature and voltage sensor design
Isolated RS-485 with 5VDC/200mA and MODBUS protocol
Max. 6 chargers can be connected in parallel, parallel managing module PAL-ADP-50AN is needed for better state syn between chargers, e.g., all chargers go to Float stage within 10 minutes. Note that chargers can be of different models but they all have been Tracer-AN (50A ~ 100A) series.
The Tracer-AN (50A ~ 100A) has two communication ports but that's for easy daisy chain connection when multiple chargers are connected together, directly connecting MT50 and WiFi module to the two ports is forbidden, an extra module called RS485-1M2S must be used when both MT50 and WiFi module is desired in the system.
