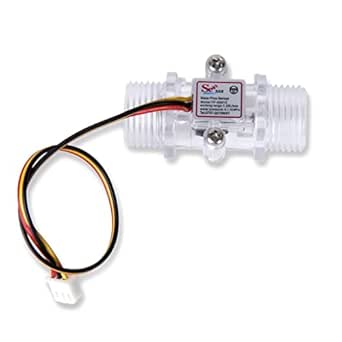

1-30L/min Water Flow Sensor Flowmeter Hall Flow Sensor Water Control

3.5 3.5 out of 5 stars 8 ratings
£7.43
{"desktop_buybox_group_1":[{"displayPrice":"£7.43","priceAmount":7.43,"currencySymbol":"£","integerValue":"7","decimalSeparator":".","fractionalValue":"43","symbolPosition":"left","hasSpace":false,"showFractionalPartIfEmpty":true,"offerListingId":"6u9PN%2BbA%2BG2OLT7PJA7094vQRu04N1flKcpCcjtZ4u5C1%2FKSfJwuX%2F6Pe31XNriyaVP%2BRs45c%2FydqpkMB27%2B%2F4TSE6FjFNzjKHJGW9L%2F2x26AgRU5FUr7Jo2MK1MLXu1%2Fuk0RUyy0FSKTEFLsPW6bW2IJRCbreXt11zozgW3m3H5P2evrPYG9AuOouHEkGjv","locale":"en-GB","buyingOptionType":"NEW","aapiBuyingOptionIndex":0}]}

Purchase options and add-ons

Colour Transparent
Brand Gazechimp
Compatible devices ['water heaters', 'credit card machines', 'water vending machines', ...]
Voltage 5 Volts, 18 Volts
Control method App

About this item

  • Lght Weight, Small Size, Easy to install.
  • Inlaid with stainless steel impeller shaft, durable, usable.
  • Seal Ring with the upper and lower part of the structure of the fuerzanunca leaks.
› See more product details

Product details

  • Package Dimensions ‏ : ‎ 14.6 x 10.6 x 2 cm; 20 g
  • Date First Available ‏ : ‎ 10 Sept. 2014
  • Manufacturer ‏ : ‎ Generic
  • ASIN ‏ : ‎ B00NGFOLUG
  • Item model number ‏ : ‎ STK0114009505
  • Customer reviews:
    3.5 3.5 out of 5 stars 8 ratings

Product description


Water flow sensor is mainly consists of plastic valve body, rotor of the assembly and the current of Hall Sensor. is installed in the hot water inlet end for detecting the flow of water.When the flow of water through the rotor assembly, Magnetic rotor will agirar and the speed will change as the flow change.Hall Current sensor output corresponding pulse Signal and feedback to controller, the controller will control the flow.
Can used for water heaters, credit card machines, water vending machine, flow measurement device.
Features:
Lght weight, small size, easy to install.
With inlays of stainless steel impeller shaft, durable, usable.
Seal Ring with the top and bottom of the structure of the fuerzanunca leaks.
Precautions:
non-violent shock, and chemical erosion.
Do not throw or hit.
Mounted vertically, should not exceed 5 degrees of tilt.
Temperature of Medium should not exceed 120 & # x2103;
Connection: Cable
Red: Positive (+)
Yellow: output signal.
Black: Negative (-)
Specifications:
The working voltage: DC4.5 5 V-24 V less valued.
Maximum operating current: 15 mA (DC 5 V).
Working Voltage Range: DC 5 ~ 18 V.
Drum capacity: & # x2264; 10 ma (DC 5 V).
Working temperature: & # x2264; 80 & # x2103;
Working Humidity Range: 35% ~ 90% RH (no frost)
By allowing pressure: pressure 1.75 Mpa
Storage Temperature: – 25 ~ + 80 °C
Storage Humidity: 25% & # xff5e; 95% RH
Flow range: 1 – 30L/min
External thread: approximately 1/2 "
Colour: Transparent
The package includes:
1 x Water flow sensor
