Mate N Lok Universal Connector Pair - 12 Way
Mate N Lok Universal Connector Pair - 12 Way
Mate N Lok Universal Connector Pair - 12 Way

Mate N Lok Universal Connector Pair - 12 Way

€8.67
(€7.23 Exc. VAT)
(6 Reviews)
42 in stock
–
+
Product code
P00179
Description

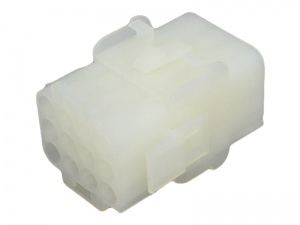

12-Way Mate N Lok Universal connector providing secure multiple connections for cables from 0.5 - 2.0mm². Male pins and female sockets are crimped onto the cables and then pushed into the the connector housings; the tabs on the terminals locking them in place. Latches on the male housing snap over the female housing when assembled, preventing them being accidentally disconnected. The error-proof design also prevents incorrect assembly.

Pins and sockets can be used in either male or female connector housings.

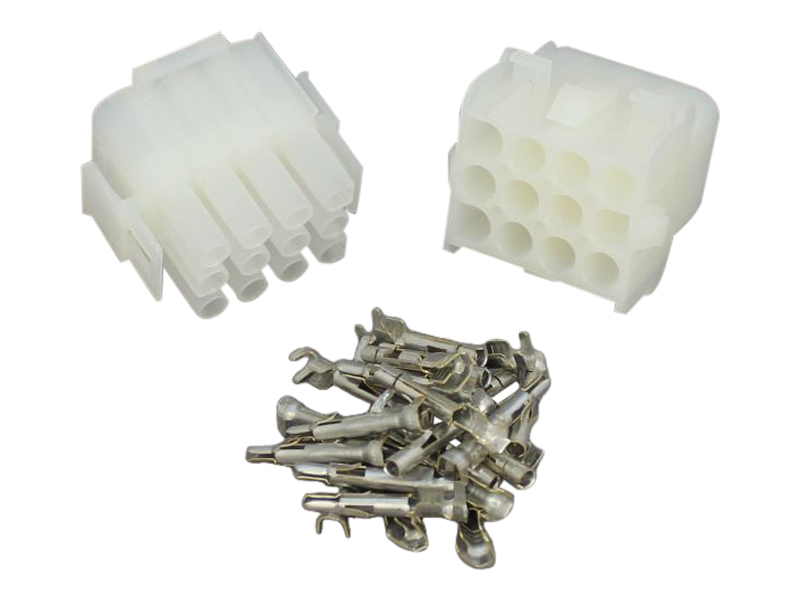

Sold as a male/female pair complete with all male pin and female socket crimp terminals (spares available - please see further information).

Further information

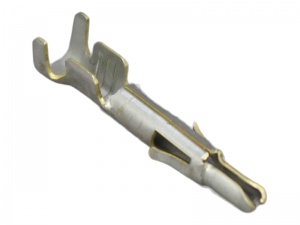

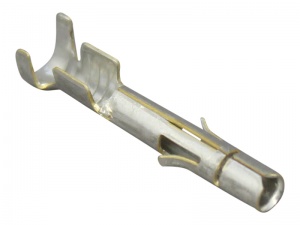

Spare terminals:

Specifications
  • Current rating: 10A per connection/way
  • Voltage rating: 600V DC
  • Max. operating temp: 120°C
  • No. connections: 12
  • Material: Nylon 6.6
  • Colour: Natural (white/opaque)
  • Overall dims, excluding latches (male housing): 27.4 (L) x  27.4 (W)  x 26.7 (H) mm
  • Overall dims excluding latches (female housing): 27.4 (L) x  28.5 (W)  x 26.7 (H) mm

Part Number : KIT

Manuals & Guides
Customer Reviews (6)
Write a Review and share your opinions!
6 Reviews:
Just the Job
Rating:
14 November 2023  |

Purchased this for my model train set and found they did the job perfectly and were easy to fit

Response:

Thank you for the great feedback

Perfect in every way
Rating:
01 October 2021  |

I bought this to connect a radio to the Schaud Electro Block power management panel in a motorhome. Its a perfect fit and had made a tidy safe job.

N Lok
Rating:
13 May 2020  |

Purchased this system for my Hornby Dublo portable layout, easy to put together and ease of use when dismantling in a hurry.
would recommend this to all railway modelling.

Mate n lok
Rating:
07 October 2019  |

Not much to say but it works. Delivered when said.

Mate n lok
Rating:
07 October 2019  |

Not much to say but it works. Delivered when said.

Good Value Connector
Rating:
01 February 2018  |

These connectors are a good price and work well; with a good range of pin options. Only down side is you need to be very careful that crimp connections to pins are sound (particularly for smaller diameter wires) before assembly into connector body since pin removal is not possible without a special tool.
