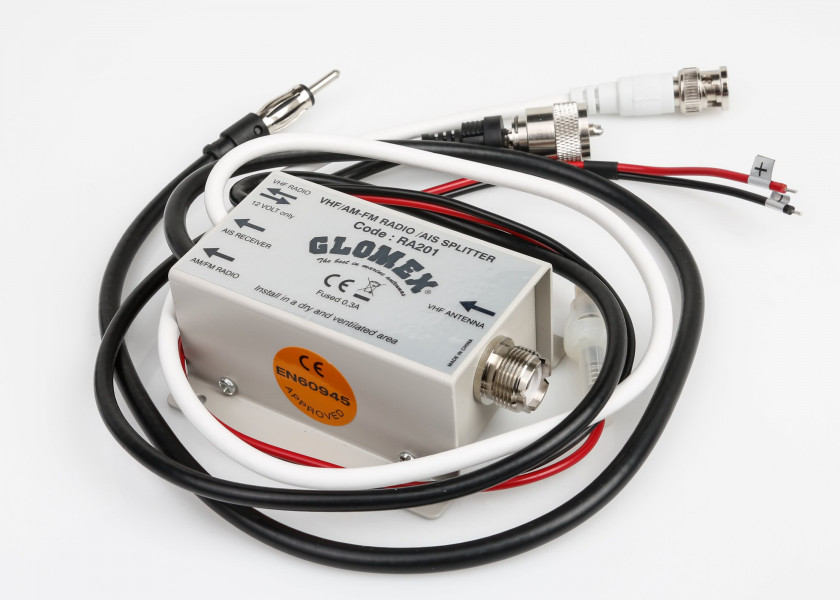

This duplexer splitter allows simultaneous reception of VHF signals, AIS data and radio with one single marine radio antenna. Suitable for GRP and stainless steel marine radio antennas.

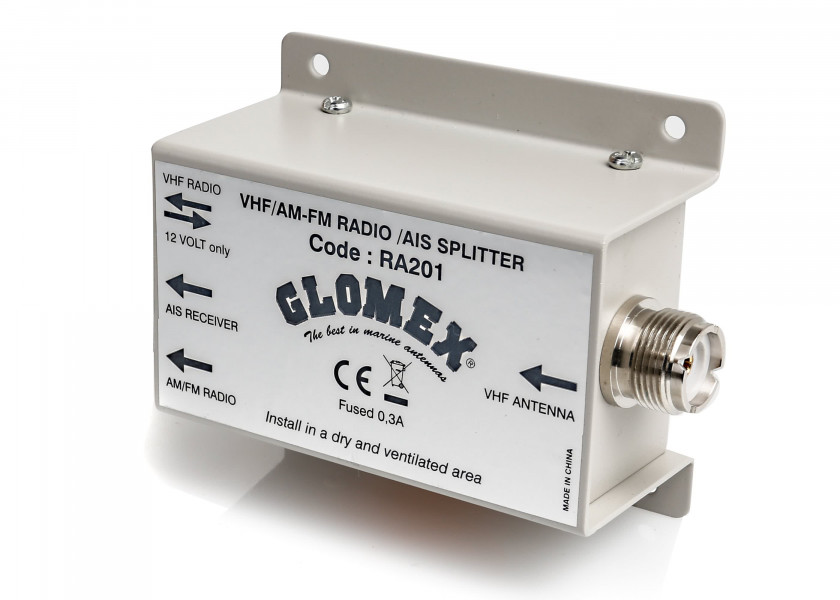

The marine radio antenna is connected with a SO-239 (PL-) socket on to the metal housing of the antenna splitter.

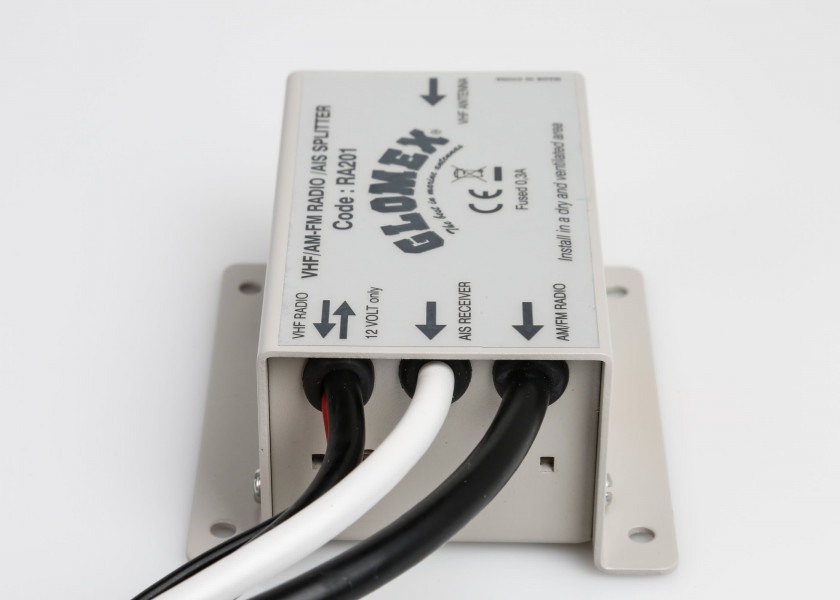

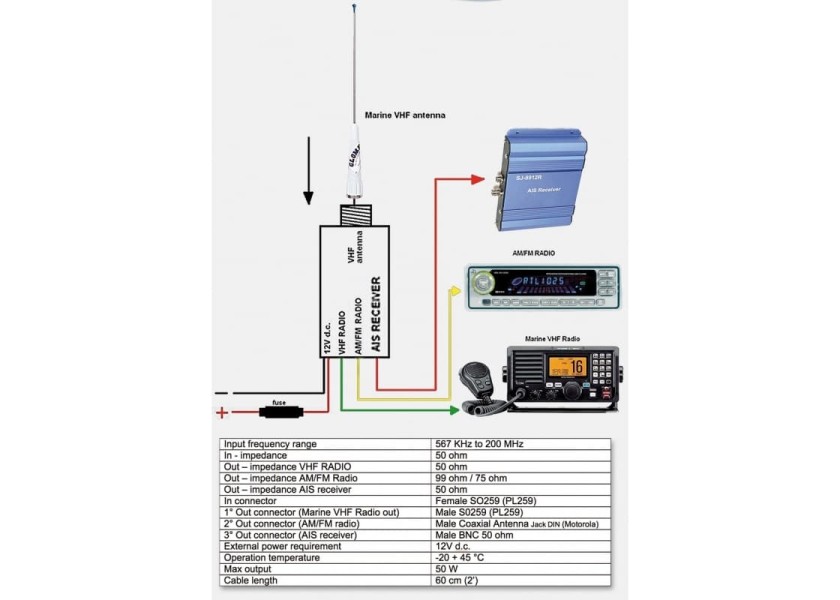

Output signals with matching impedance are available as follows:

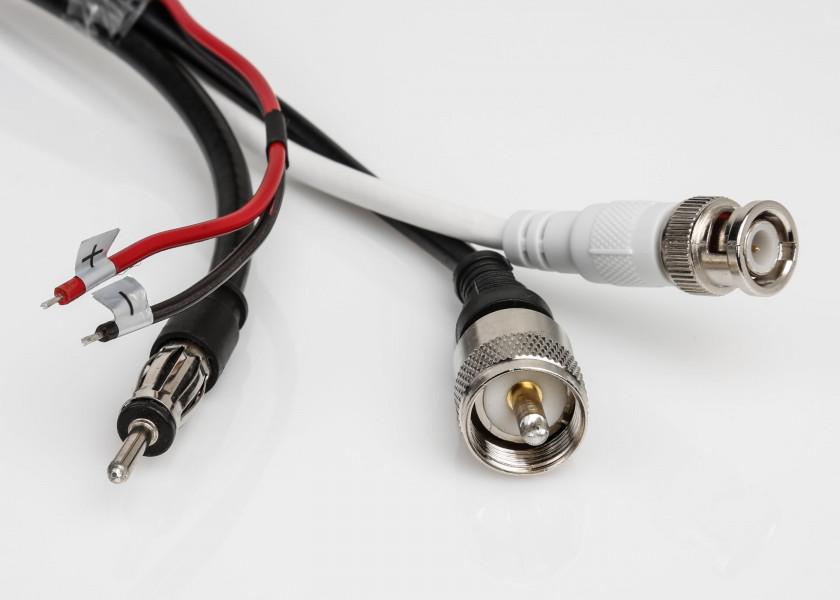

- Marine radio via 0.5 m coax-cable (black), 50 ohms, with PL259 plug
- AIS via 0.5 m coax cable (white), 50 ohms, with BNC plug
- Radio for car radio via 0.5 m RG-62 AM/FM cable (black), 93 ohms, with MOTOROLA plug
The switch is connected to a 12 V power supply with a 2-pole DC connection cable (0.5 m long). Current consumption: approx. 25 mA.
NOTE:
The switch is not suitable for use with AIS transmitters.
